| Model Number: | Rs1260/1400/1500/1600 | Color: | White |
|---|

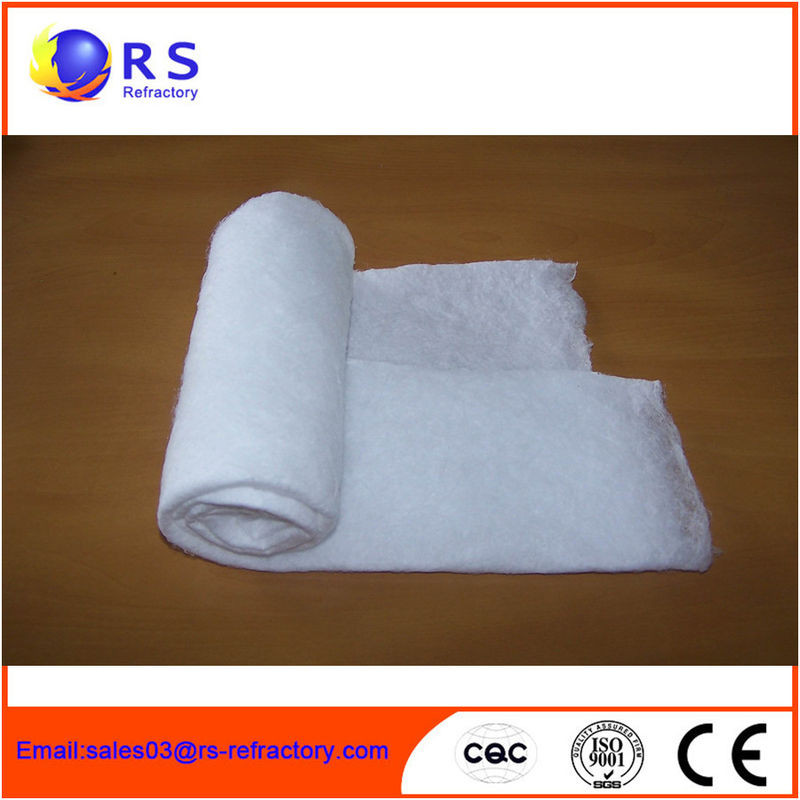

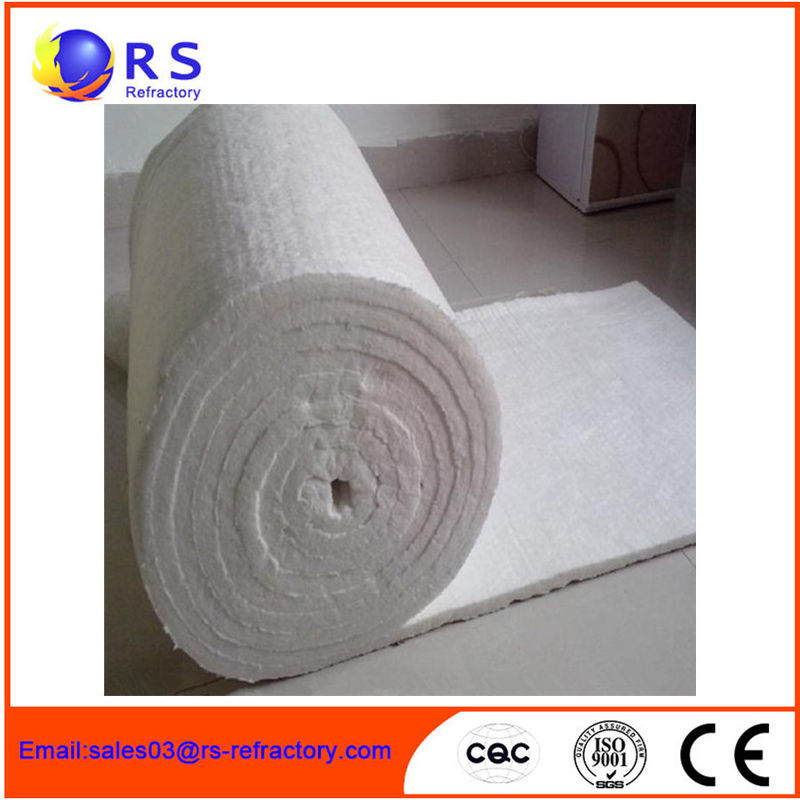

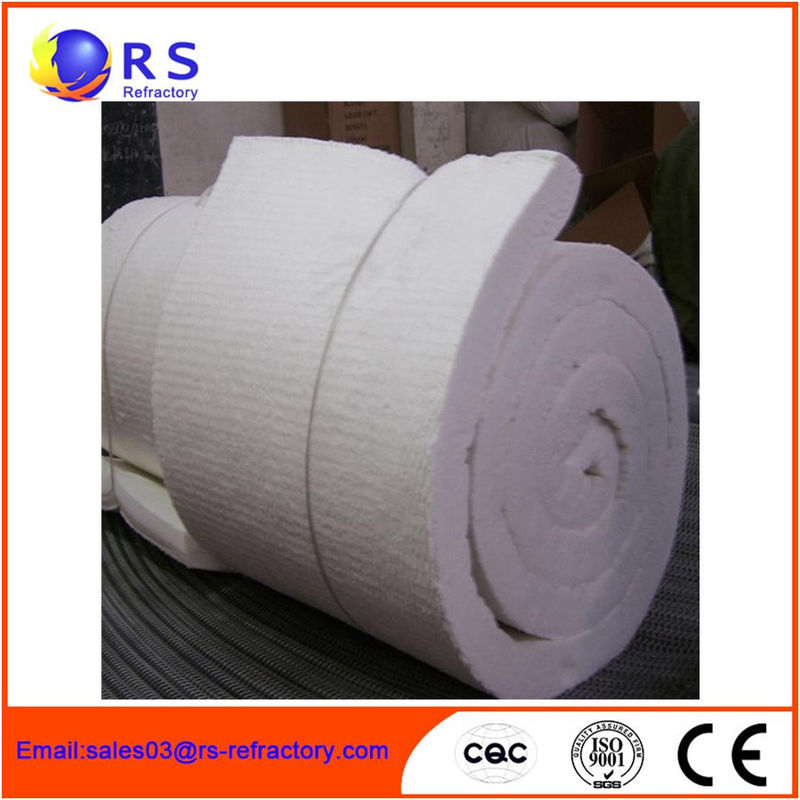

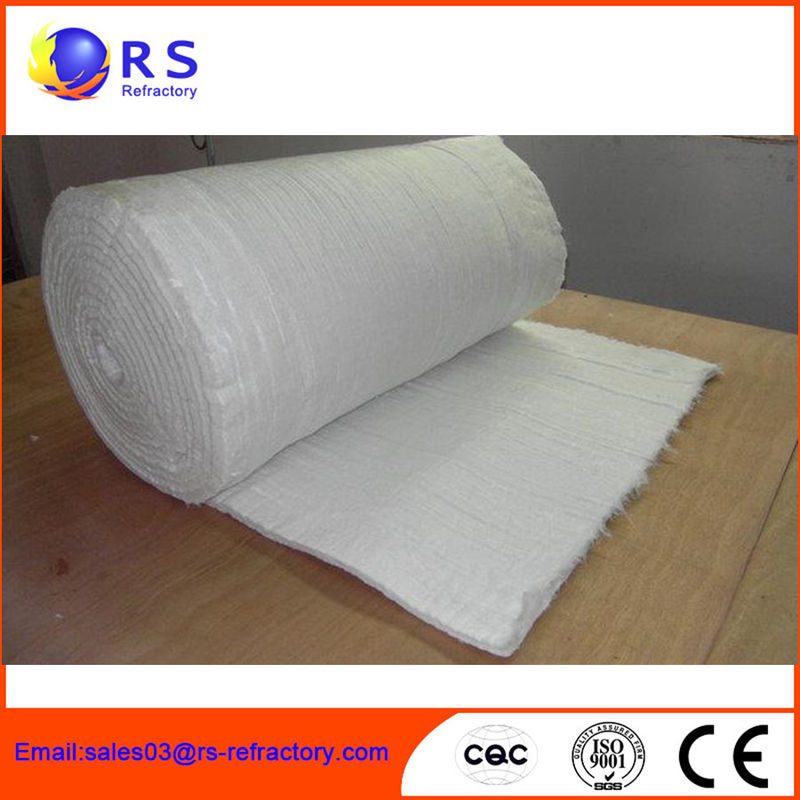

White Ceramic Insulation Blanket For Boiler / Refractory Ceramic Fire Blanket
Specifications
Needled blanket
Non-combustible
Low density and low thermal conductivity
Shorter heat up and cool down time
Ceramic fiber board for heat resistant
Description:
ceramic fiber blanket is composed of long,flexible,interwoven fibers manufactured by the “blown”and the “spun”process yielding a strong,lightweight yet durable blanket for applications in a temperature range from 1100°C to 1430°C Ceramic fiber blanket has the heat resistance of a hard refractory with five times better insulation value.
Applications:
Ceramic Fiber Blanket is made of high purity Alumino-Silicate (and Zirconia) fibrous wool.
♦ Refractory back-up installation
♦ Direct exposure to heat as furnace hot face lining
♦ Expansion joint seal
♦ Fire protection
♦ General high temperature insulation
Phsyical and chemical index:
Phsyical and chemical index:
| 1260 Blanket | 1400 Blanket | 1500 Blanket | 1600 Blanket | |
| Classification temperature ( °C) | 1260 | 1425 | 1500 | 1600 |
| Melting point (°C) | 1760 | 1700 | 1760 | – |
| Colour | White | White | Blue gree | White |
| Fiber diameter ( u m) | 2.6 | 2.8 | 2.65 | 3.1 |
| Fiber length (mm) | ~250 | ~250 | ~150 | ~100 |
| Linear shrinkage(%) | (1100oC x 24 hrs)1.8 | (1300 o C x 24 hrs) 1.5 | ||
| Shot content (>212 micro meter) (%) | 18 | 18 | ||
| Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201 | ||||
| 1260 blanket | 64 kg/m3 | 96 kg/m3 | 128 kg/m3 | 160kg/m3 |
| mean 400°C | 0.13 | 0.12 | 0.07 | 0.09 |
| mean 600 °C | 0.21 | 0.17 | 0.12 | 0.14 |
| mean 800°C | 0.30 | 0.25 | 0.16 | 0.20 |
| 1400 blanket | 128 kg/m3 | 160kg/m3 | ||
| mean 600 °C | 0.13 | 0.14 | ||
| mean 800 °C | 0.20 | 0.20 | ||
| mean1000 °C | 0.29 | 0.28 | ||
| Chemical composition (%) | ||||
| Al2O3 | 47.1 | 35.0 | 40.0 | 72 |
| SiO2 | 52.3 | 49.7 | 58.1 | 28 |
| ZrO2 | 15.0 | |||
| Cr2O3 | 1.8 | |||
| Bulk density(Kg/m3) | 64,96,128,160 | |||
| Available size(mm/roll) |
7200*600*6,12.5,20,25,38;3600*600*50 |
|||
