| Color: | White Red |
|---|

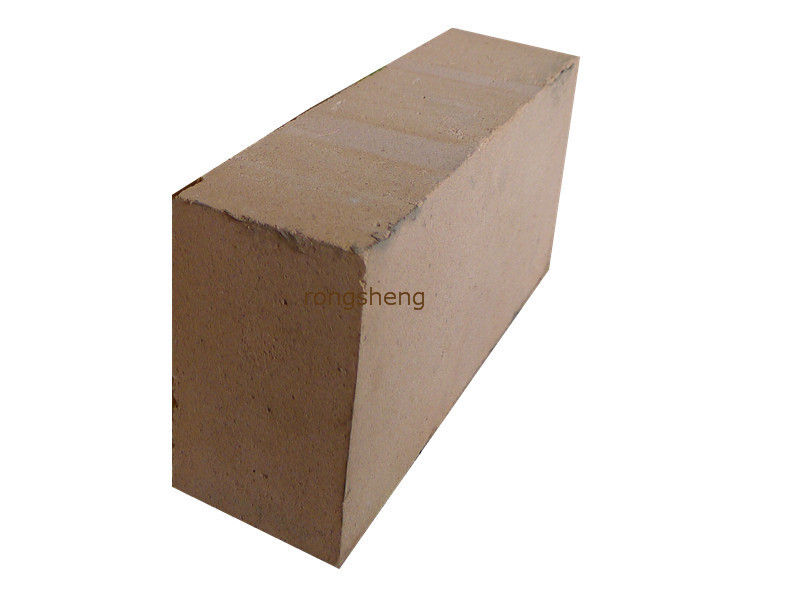

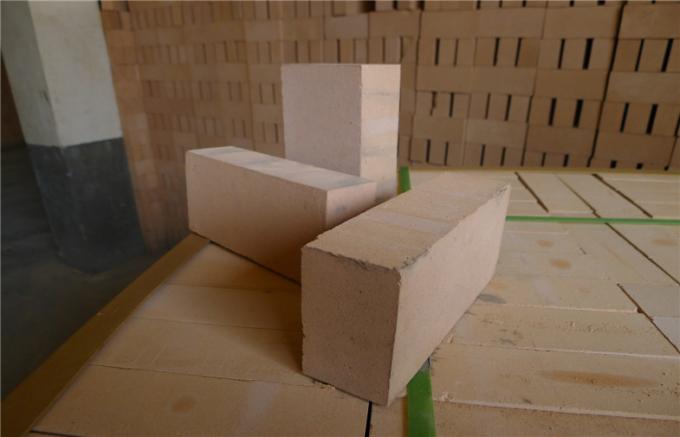

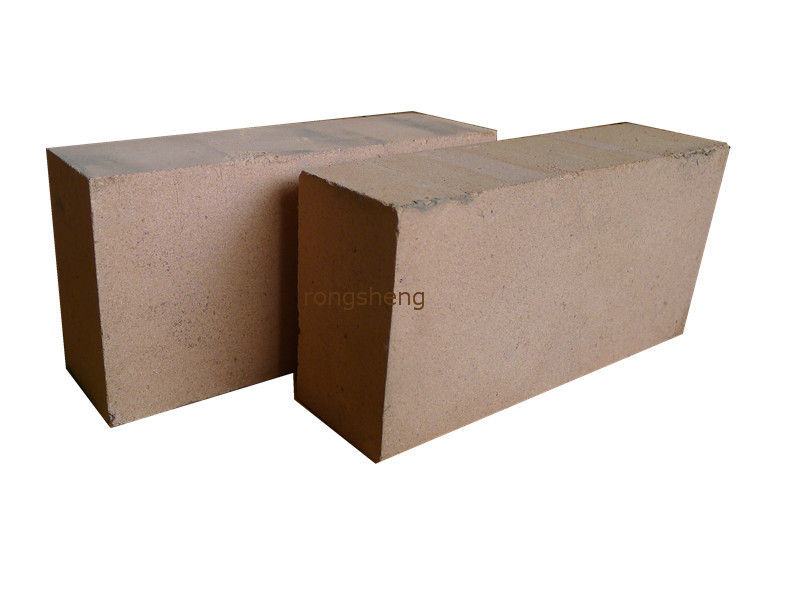

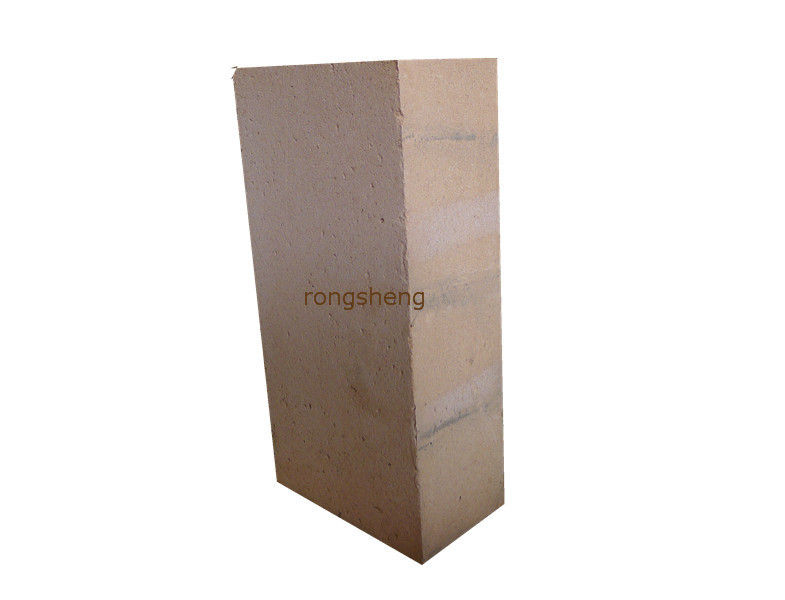

Light weight insulating brick for forging furnace and heat treatment furnace
Description:
Fire clay insulation brick is made of local top grade fireclay materials under the high temperature according to the lasted national standard, which possesses even bulk density, high strength, low thermal conductivity and low impurity.
Application:
Fire clay insulation brick mainly used for the insulating lining of hot surfaces or backing heat-insulating layers of other refractory materials. The refractory linings or heat-insulating materials of the industries, such as, ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns,etc
Specifications:
|
|
PNG-1.3 |
PNG-1.0 |
PNG0.8 |
PNG-0.5 |
PNG-0.3 |
|
Al2O3%≥ |
42 |
42 |
42 |
40 |
40 |
|
BD g/cm3≤ |
1.3 |
1 |
0.8 |
0.5 |
0.3 |
|
CCS Mpa≥ |
8 |
6 |
4 |
2 |
1 |
|
PLC ℃ |
1400 |
1350 |
1250 |
1150 |
1100 |
|
TCS W/m.k |
0.55
|
0.4
|
0.35
|
0.25
|
0.18
|
|
average temperature(350℃±25℃)≤ |
Competitive Advantage:
- Competitive Price. Make the products competitive in your market.
- Abundant Experience. Prevent cracks and twist in bricks.
- Different Moulds. Save mould fees for you.
- Strict Quality Control. Meet clients’ quality requirement.
- Large stocks. Guarantee prompt delivery.
- Professional Packing. Avoid damage and secure the goods in transportation
