Parameters
-
Comments
| Al2O3, %: | 48-70 | Refractoriness °C ≥: | 1750 |
|---|---|---|---|
| AP, % ≤: | 20-24 |

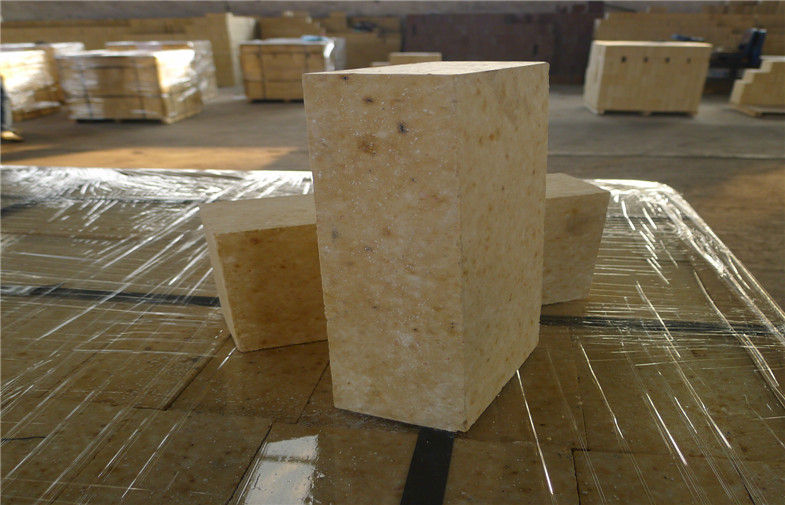

High Density Shaped High Alumina Refractory Brick , Insulated Refractory Fire Bricks
Description:

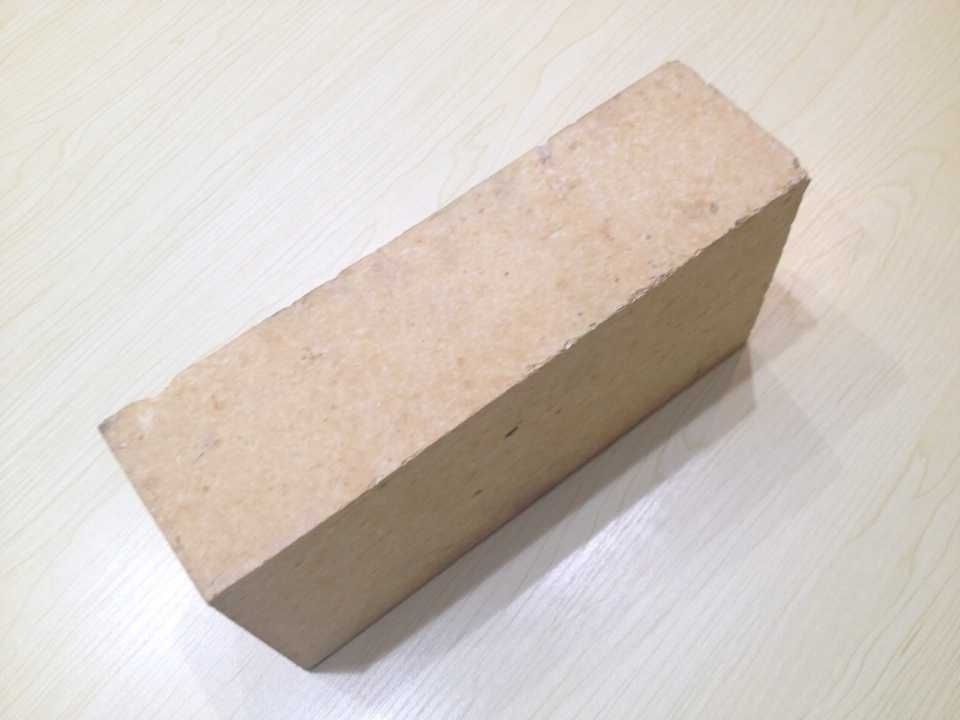

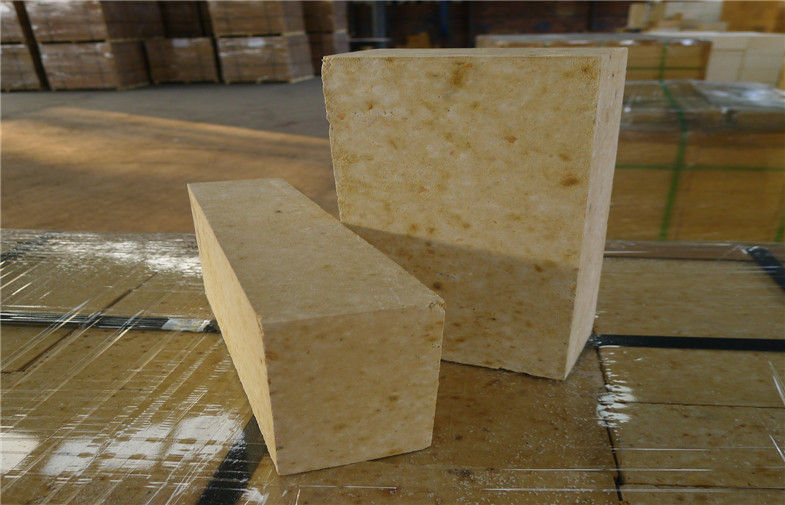

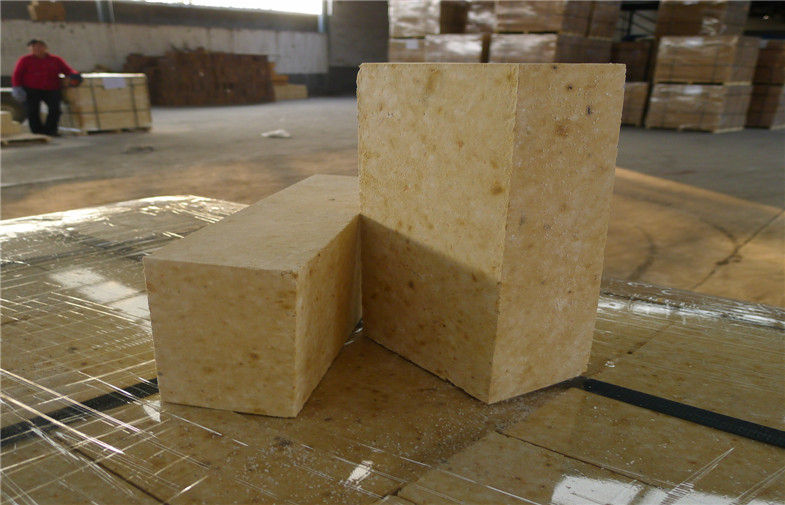

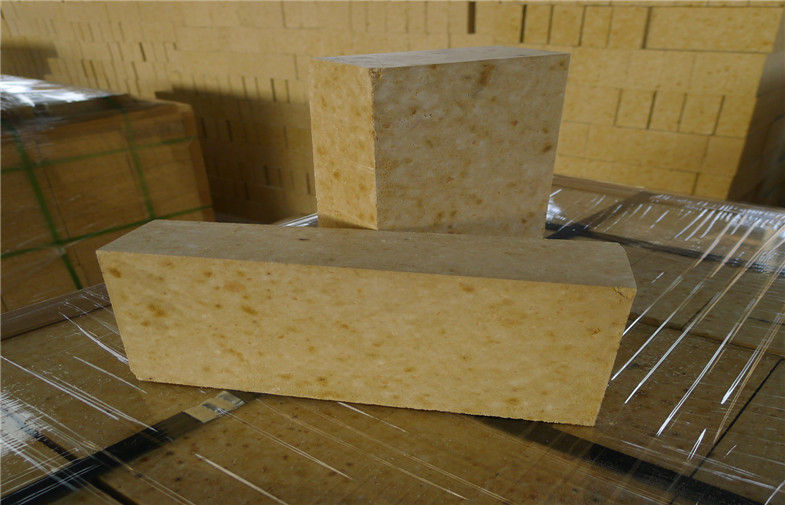

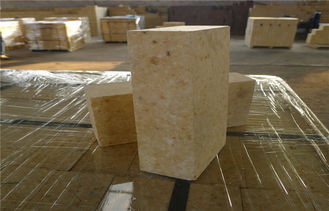

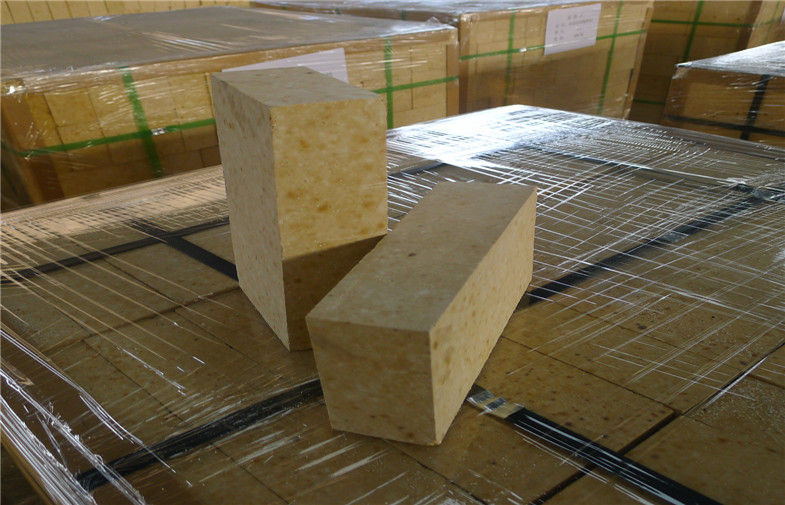

high alumina brick
Feature:
Product specification:
standard form, normal standard, shaped and special shaped bricks.Can be used in various kilns because of its cheapness and general tray package. Among all of the refractory materials, it is the mostly used in the key positions.Molding method: it has down draft kiln and tunnel kiln and the general sintering temperature is 1360-1480 degrees. It is a kind of aluminosilicate refractory product which aluminum oxide (Al2O3) content is higher than 48%.
Applications:
1. Steel furnaces
2. Iron making furnaces
3. Glass kiln
4. Ceramic tunnel kiln
5. Cement kiln
Specifications:
High aluminum refractory bricks physiochemical index
|
Items |
DRL-135 |
DRL-145 |
DRL-150 |
DRL-165 |
DRL-155 |
DRL-48 |
|
Al2O3, % ≥ |
70 |
75 |
80 |
65 |
55 |
48 |
|
refractoriness °C ≥ |
1790 |
1790 |
1790 |
1790 |
1770 |
1750 |
|
AP, % ≤ |
20 |
20 |
19 |
24 |
24 |
24 |
|
CCS ,MPa ≥ |
65 |
70 |
80 |
49 |
44.1 |
39.2 |
|
PLC, % ≥ |
±0.1 |
±0.1 |
±0.1 |
+0.1~-0.4 |
+0.1~-0.4 |
+0.1~-0.4 |
|
1450°Cx2h |
1500°Cx2h |
1450°Cx2h |
||||
|
0.2MPa RUL, °C ≥ |
1500 |
1550 |
1650 |
1500 |
1470 |
1420 |
|
Creep rate ar room temperature, % ≤ |
0.6 1350°C×50h |
0.6 |
0.7 |
– |
– |
– |
|
1450°C×50h |
1500°C×50h |
– |
– |
– |
||
Competitive Advantage:
- Competitive Price. Make the products competitive in your market.
- Abundant Experience. Prevent cracks and twist in bricks.
- Different Moulds. Save mould fees for you.
- Strict Quality Control. Meet clients’ quality requirement.

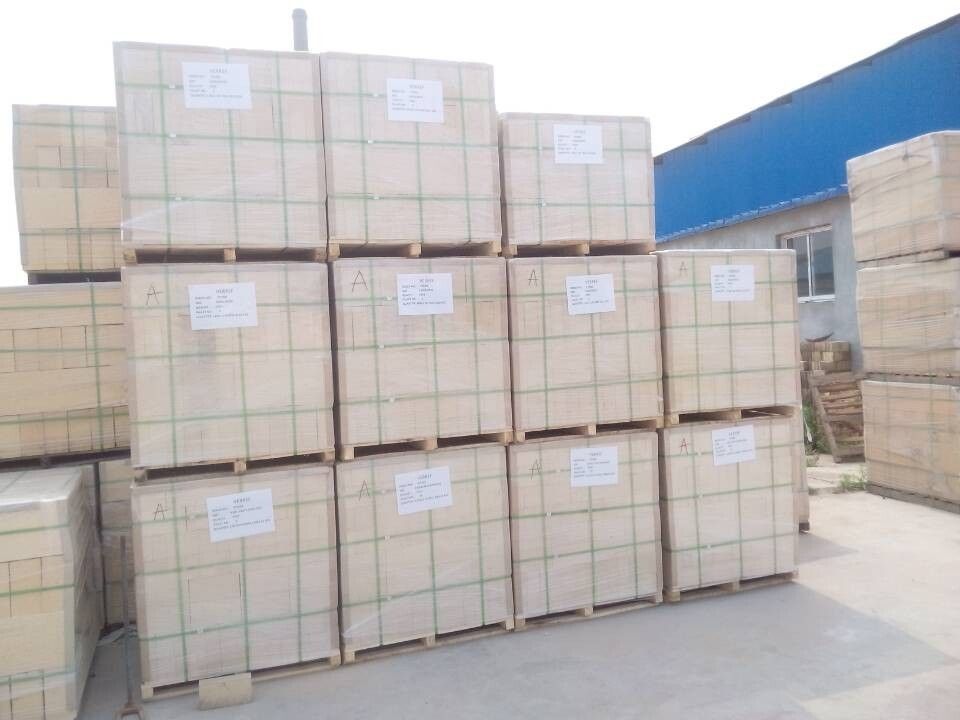

- Large stocks. Guarantee prompt delivery.

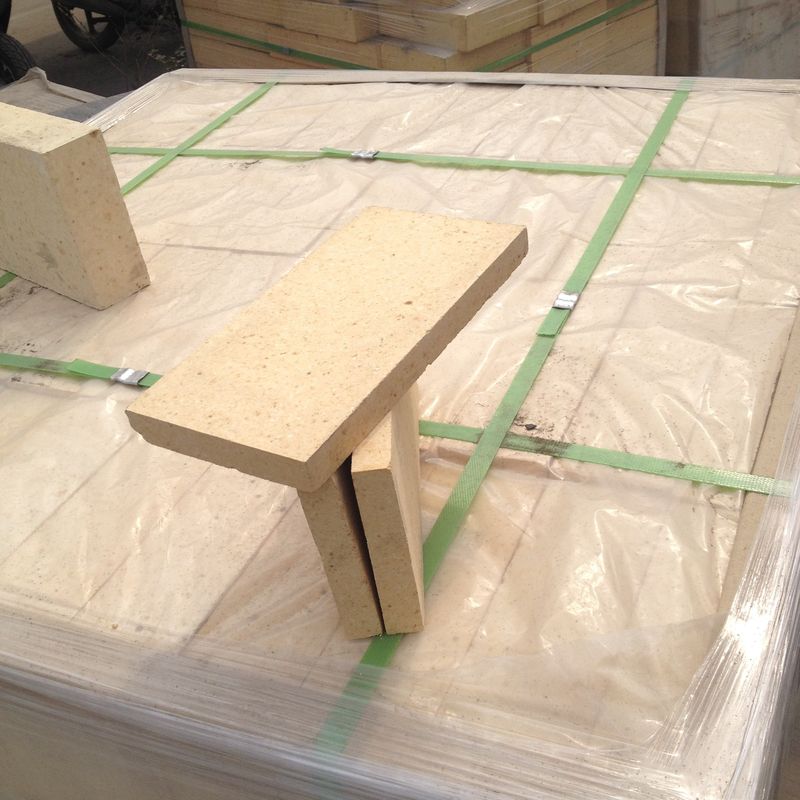

- Professional Packing. Avoid damage and secure the goods in transportation
