| Fiber Diameter: | 5um | Temprature Classification: | 1260℃-1600℃ |
|---|---|---|---|
| Shape: | Ceramic Fiber Blanket | Color: | White |
| Thickness: | 10mm~50mm | Width: | 600mm, 610mm |

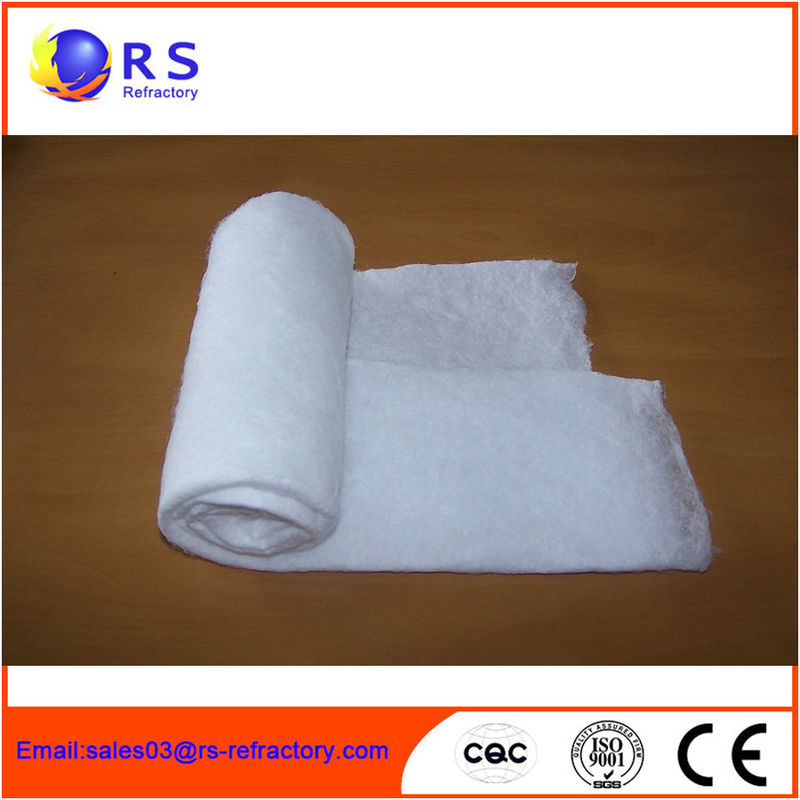

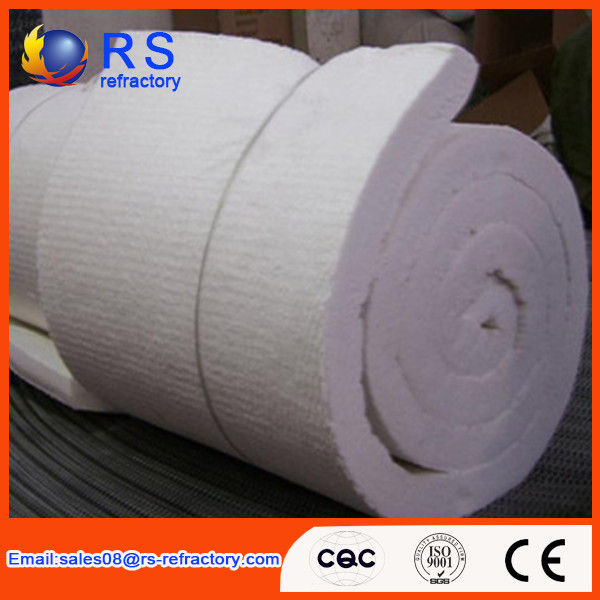

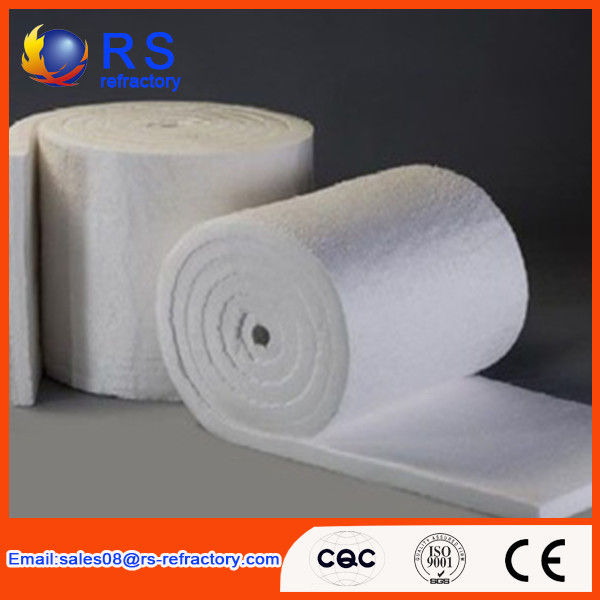

Bio Soluble 1260 Ceramic Fiber Blanket Insulation With Expansion Joint Seal
Production Description:
ceramic fiber blanket is composed of long,flexible,interwoven fibers manufactured by the “blown”and the “spun”process yielding a strong,lightweight yet durable blanket for applications in a temperature range from 1100°C to 1430°C Ceramic fiber blanket has the heat resistance of a hard refractory with five times better insulation value.
Applications:
Ceramic Fiber Blanket is made of high purity Alumino-Silicate (and Zirconia) fibrous wool.
1.Direct exposure to heat as furnace hot face lining
2.General high temperature insulation,fire protection
3. Refractory back-up installation,expansion joint seal
Phsyical and chemical index:
| 1260 Blanket | 1400 Blanket | 1500 Blanket | 1600 Blanket | |
| Classification temperature ( °C) | 1260 | 1425 | 1500 | 1600 |
| Melting point (°C) | 1760 | 1700 | 1760 | – |
| Colour | White | White | Blue gree | White |
| Fiber diameter ( u m) | 2.6 | 2.8 | 2.65 | 3.1 |
| Fiber length (mm) | ~250 | ~250 | ~150 | ~100 |
| Linear shrinkage(%) | (1100oC x 24 hrs)1.8 | (1300 o C x 24 hrs) 1.5 | ||
| Shot content (>212 micro meter) (%) | 18 | 18 | ||
| Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201 | ||||
| 1260 blanket | 64 kg/m3 | 96 kg/m3 | 128 kg/m3 | 160kg/m3 |
| mean 400°C | 0.13 | 0.12 | 0.07 | 0.09 |
| mean 600 °C | 0.21 | 0.17 | 0.12 | 0.14 |
| mean 800°C | 0.30 | 0.25 | 0.16 | 0.20 |
| 1400 blanket | 128 kg/m3 | 160kg/m3 | ||
| mean 600 °C | 0.13 | 0.14 | ||
| mean 800 °C | 0.20 | 0.20 | ||
| mean1000 °C | 0.29 | 0.28 | ||
| Chemical composition (%) | ||||
| Al2O3 | 47.1 | 35.0 | 40.0 | 72 |
| SiO2 | 52.3 | 49.7 | 58.1 | 28 |
| ZrO2 | 15.0 | |||
| Cr2O3 | 1.8 | |||
| Bulk density(Kg/m3) | 64,96,128,160 | |||
| Available size(mm/roll) | 7200*600*6,12.5,20,25,38;3600*600*50 | |||
Company Information:
Zhengzhou Rongsheng Refractory Material Co., Ltd. is located in the hinterland of Central Plains, at the foot of Songshan Mountain, and adjacent to Zhengshao Highway, Longhai and Jingguang railways. The convenient transportation, abundant resources and high quality minerals provide favorable conditions for the production of refractory materials.
Packaging & Delivery:
FAQ:
1. Are you a manufacture or trading company ?
Factory+ trade(mainly factories, at the same time, we operates other related products)
2. Can we visit your factory ?
Sure,welcome at any time, seeing is believing.
3. Is your company accept customization ?
We have own factory and excellent technical team, and we accept OEM service
4. What’s the MOQ of trial order ?
No limit, we can offer the best suggestions and solutions according to your condition.
5. Will your company supply samples ?
Yes, we do. The shipping charges should be undertaken by customer.
