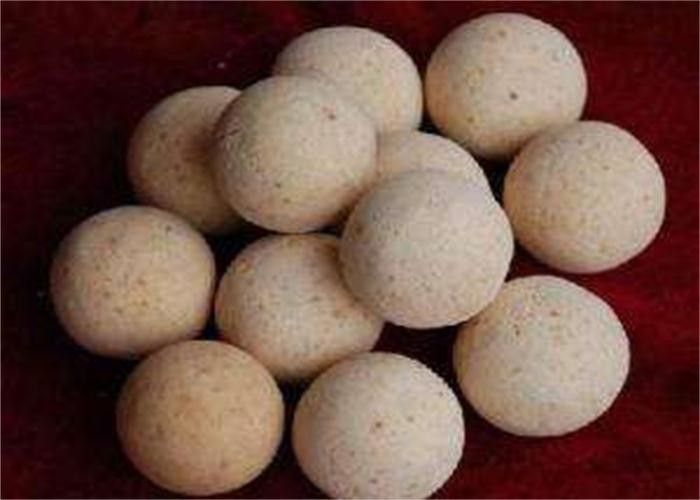

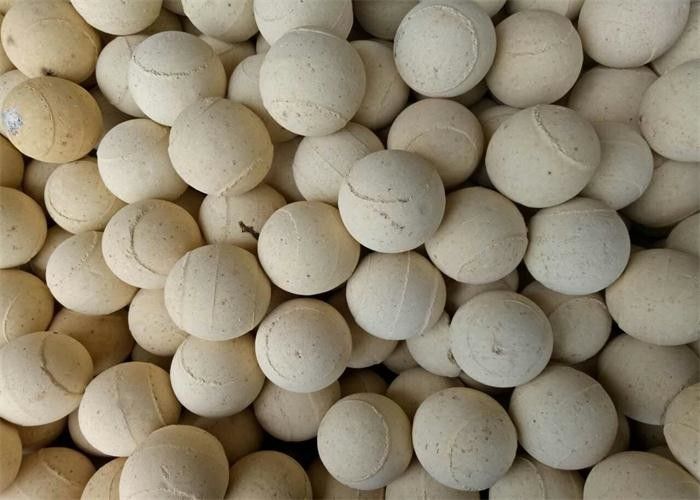

1900 Degree Size 405060 Refractory Ball For Hot Blast Stove High Temperature Resistance
-
Parameters
-
Comments
| Al2O3 ≥%: | 75 | AP ≤ %: | 22 |
|---|---|---|---|
| BD ≥g/cm3: | 2.4 | CCS ≥N/each Ball: | 16000 |
| Refractoriness ≥°C: | 1790 | PLC %: | 0.1-0.4 |
| Thermal Shock Resistance ≥each Time: | 40 |
1900 Degree Size 40,50,60 Refractory Ball For Hot Blast Stove , High Temperature Resistance
Features:
1High mechanical strength
2 Long service life
3Good chemical stability, no chemical reaction with the material;

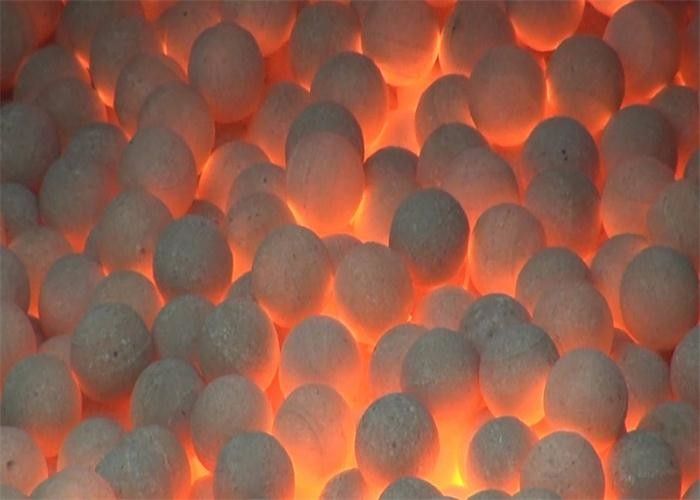

4 High temperature resistance, can reach 1900 degrees
Applications:
1 Ordinary fire resistant ball is suitable for converter in sulphuric acid and chemical fertilizer industry.
2 High aluminum refractory ball, suitable for urea, iron and steel industries, such as hot blast stove, heating converter and other equipment.
Technical data
| Item/index/Materials | Al2O3 ≥% |
Fe2O3 ≤% |
MgO ≥% |
Cr2O3 % |
AP ≤ % |
BD ≥g/cm3 |
CCS
≥N/each ball |
Refracto
riness ≥°C |
PLC % | RUL≥°C | Thermal shock resistance ≥each time |
| Mullite ball | 75 | 22 | 2.4 | 16000 | 1790 | 0.1-0.4 | 1550 | 40 | |||
| Mg-Al ball | 5-10 | 85 | 18 | 2.85 | 18000 | 1790 | 1550 | 18 | |||
| High alumina ball | 75 | 1.5 | 23 | 2.55 | 20000 | 1790 | 1480 | 15 | |||
| High alumina 65 low creep ball | 65 | 1.5 | 22 | 2.6 | 15000 | 1790 | 0.1-0.4 | 1500 | |||
| high alumina 75 low creep ball | 75 | 1.5 | 21 | 2.65 | 15000 | 1790 | 0.1-0.4 | 1520 | |||
| Mg-Al chromium ball | 5-10 | 55 | 2 | 20 | 2.8 | 15000 | 1790 | 1520 | 15 | ||
| Mg-Al-Cr ball | 80 | 2 | 20 | 2.6 | 20000 | 1790 | 1520 | 15 |

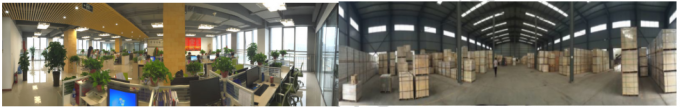

Company information
